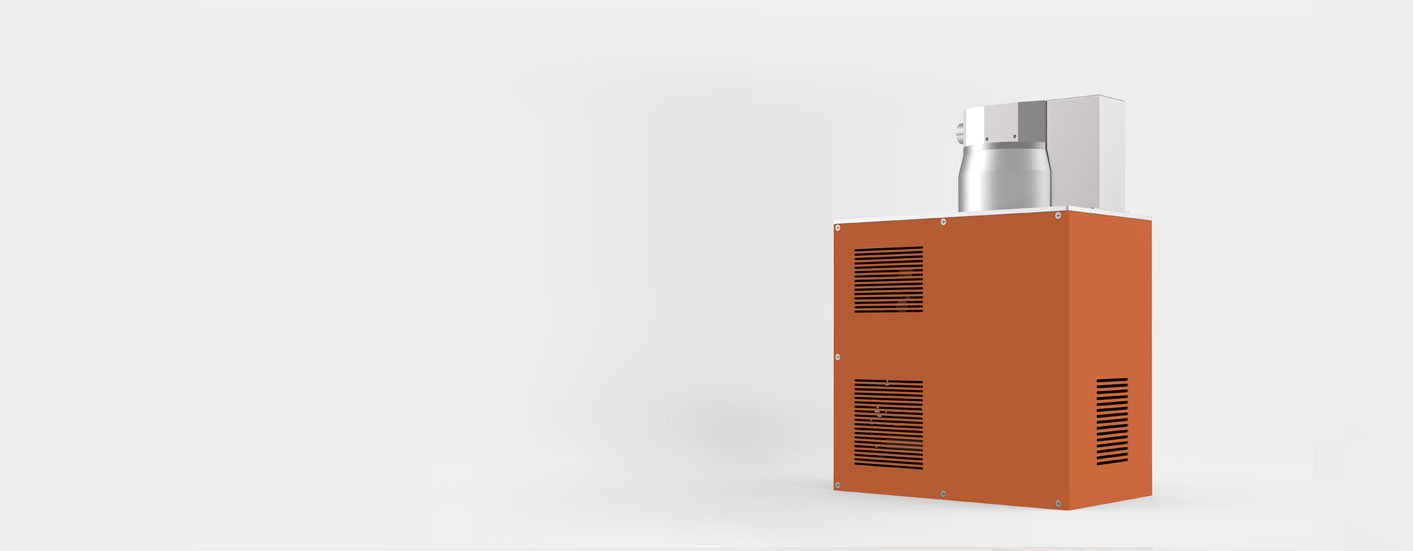

CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source

150kV tube voltage, The world's leading carbon
nanotube-based cold cathode CT tube technology
More
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source

Integrated microfocus X-ray source

Carbon Nanotube Cold Cathode CT Tube Technology

CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source

High-definition X-ray images

Pulse on, low power consumption, long life
Effectively eliminate motion blur and artifacts
Reduce unwanted radiation doses

CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source

Application

NDT X-RAY/Microfocus CT
PCB/PCBa, Semiconductor
New energy, 3C electronics
Material Analysis, Industrial Castings

CNT-L150 Integrated Carbon Nanotube Microfocus X-ray Source
Application case
Specifications
  • CNT-L150
Specifications System parameters Characteristic Unit
X-ray tube voltage setting range 20 ~ 150 kV
X-ray tube current setting range 10 ~ 120
(The maximum effective dose is equivalent to thermal products with the tube current of 300μA )
μA
Tube voltage setting method Command input operation via serial communication from an external control device 1kV step
Tube current setting method Command input operation via serial communication from an external control device 1μA step
Operating mode Pulse mode: Pulse Exposure Time 5μs ~ 200ms
Continuous mode: Continuous
/
Irradiation window material Beryllium (thickness: 0.5) mm
Focal size (nominal) 10-15 (optional) μm
Maximum X-ray beam angle 60~90° (optional) angle
Serial interface communication method Double full-duplex mode -
FOD 18 mm
x-ray tube type Closed tube (photon efficiency is more than 3 times that of traditional hot cathode) -
Cooling method Oil cooler -
Input power DC36 V
Power consumption 60 W
Rated output Continuously working -
Size 256 x 140 x 350 mm
Weight 13 kg
Operating temperature 10-40 °C
Storage temperature 0-50 °C
Working and storage temperature Below 85 (no condensation) %
Pollution level 2 -
